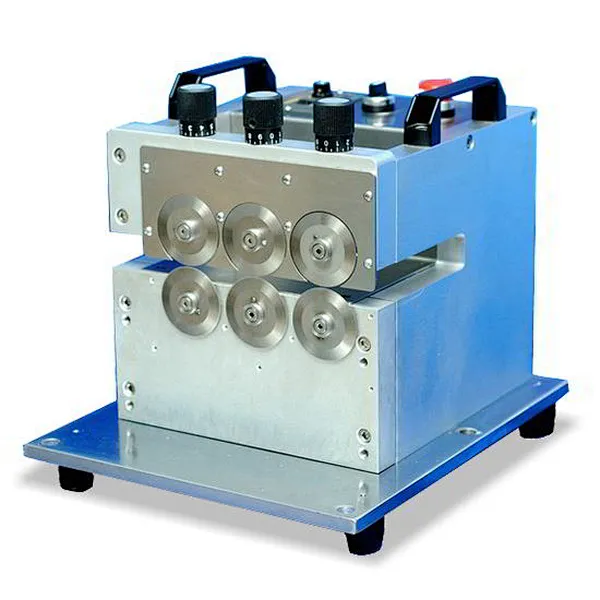

Motor-driven MDS-700 With unique cutting method, the circuit board is cut by A, B, C, three groups of circular blades. The whole cutting process is divided into three stages which can reduce 80% stress compared with the traditional separator and make the separated aluminum plate without deformation after cutting.

MDS-700 Series Motorized PCB Separator Feature

With unique cutting method, the circuit board is cut by A, B, C, three groups of circular blades. The whole cutting process is divided

into three stages which can reduce 80% stress compared with the traditional separator and make the separated aluminum plate without

deformation after cutting.

With the multiple cutting method, cutting process is very smooth and greatly improves the capability of position of V-CUT groove .Even

with a shallow slot V-CUT groove,the board would not jump out of blade.

Blades adopt SKD11 high speed steel material made in Germany with long service life.

All the cutting blades are calibrated by Excitation double-frequency laser interference measurement instrument. Ensure that the latter

knife can accurately continue to cut in the slots which already cut by the former knife. The jitter of knife point is less than 0.02mm.

Ensure perfect cutting quality.

Stainless steel 1.2 or 2.4 meter platform is choosable.

The upper and below circular blade can be precisely adjusted.be adjusted.

X, Y axis can be adjusted to ensure cutting accuracy.

Six circular blade Motorized PCB Separator MDS-700 Specification

Model

MDS-700(with no platform)

MDS-710 (with 1.2M platform) MDS-720 (with 2.4M platform)

Machine size

L325*W380*H333mm

L325*W380*H333mm

L325*W380*H333mm

Platform size

None

L1200 *W360*H190mm

L2400 *W360*H190mm

Suitable PCB Length

250mm

250mm-600mm

250mm-1200mm

Suitable material

FR4,AL,LED Board

FR4,AL,LED board

FR4,AL,LED board

Max PCB width

/

350mm

350mm

Cutting Speed

Adjustable

Adjustable

Adjustable

Max PCB Thickness

3.5mm

3.5mm

3.5mm

Minimum component distance from v-groove

1.4mm

1.4mm

1.4mm

Top component height

15mm

15mm

15mm

Bottom component height

0mm(have no component)

0mm(have no component)

0mm(have no component)

Max separating width of Single bar

100mm

100mm

100mm

Voltage

220V/50HZ

220V/50HZ

220V/50Hz

Machine weight

33k

33kg+6kg

33kg+15kg

Power

60W

60W

60W
