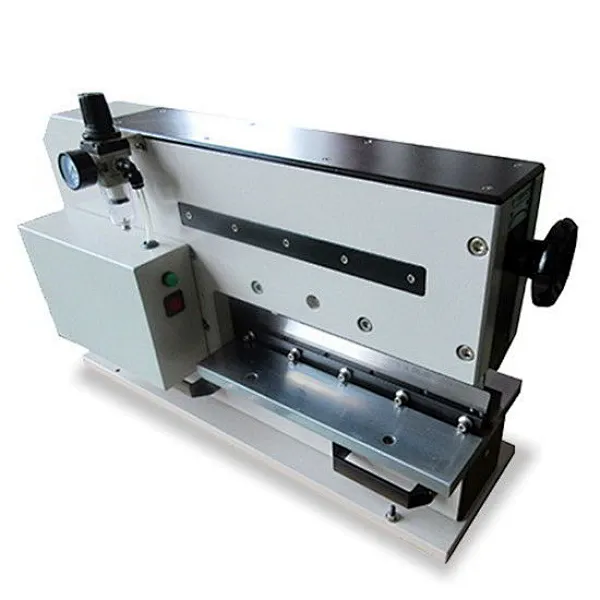

Pneumatic Linear PCB Separator MDS-620

Pneumatic Linear PCB Separator MDS-620

MDS-620 Pneumatic Linear PCB Separator Feature

Adjust blades to PCB score line using rotary knob.

Boards are separated without bending or breaking.

Safe for use with flexible and thin (to 0.5mm) PCBs.

Smooth, quiet pneumatic-powered unit with foot -pedal activation.

Wedge-shaped linear blades contour to v-groove score lines and operate in a rocking motion.

Can be used with aluminum and other substrates, including substrates with metal inner layers.

MDS-620 - Specifications

Model

MDS-620

PCB Thickness

0.8 mm to 3.0 mm

Maximum Depaneling Length

330 mm

Maximum Component Height

20 mm

Depaneling Mode

Pneumatic

Separating Speed

N/A

Scoring Angle

20˚

Power Supply

220V,50HZ, 110V,50HZ(option)

Starting mode

Switch

Air requirement

0.7Mpa

Product Size

L680xW250xH450mm

Net Weight

138 kg
