Benchtop Dispensing Machine BD-400RY

Benchtop Dispensing Machine BD-400RY

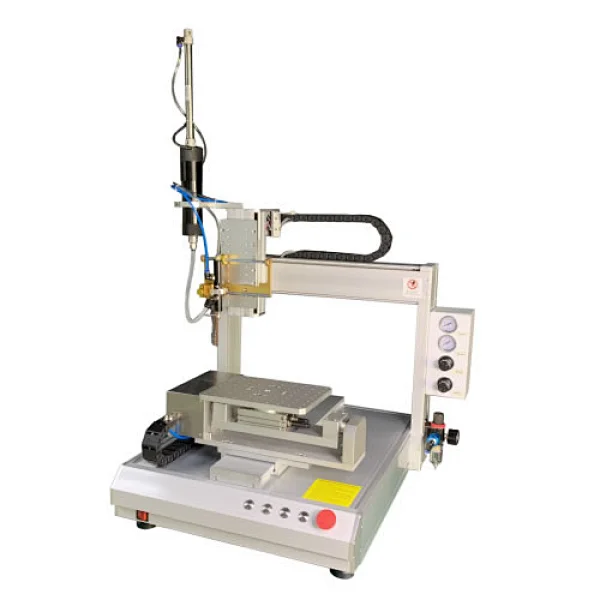

The BD-400RY is an automated desktop type dispensing Robot with tiltable and rotary platform ,which can realize no dead angle glue dispenisng compared with traditional 3 axis dispensing robot.

Built-in a fully-integrated dispensing controller

● Built-in a fully-integrated dispensing controller

Hand-held teach pendant with powerful software  is easy for programming.

● Hand-held teach pendant with powerful software is easy for programming.

Programmable tiltable  Y axis with 90 degree rotatary platform realize no dead angle glue dispensing.

● Programmable tiltable Y axis with 90 degree rotatary platform realize no dead angle glue dispensing.

Virous valves with glue feeding system meet different fluid  dispensing requirement , for  examples:  silica gel,   grease ,other fluid etc.

● Virous valves with glue feeding system meet different fluid dispensing requirement , for examples: silica gel, grease ,other fluid etc.

Adjustable precision  valve GR-H2222

Adjustable precision valve GR-H2222

Plunger structure ,small flow rate valve ,flow rate can be ajusted ,small size and corrosion -resistant,it is suitable for midium -high viscosity ,and poor fluidity glue ,such as silica gel ,epoxy glue,grease,red glue, ,etc.

Model

GR-H2222

Air pressure

0.4-0.7Mpa

Min Dispensing volume

0.02ml

Max viscocity

1-50,000 cps

Operating frequency

<400 points/min

Glue inlet dimension

1/8"

Suck back  valve GR-H25

Suck back valve GR-H25

The GR-H25 Suck-Back Valve is designed to prevent extra protection against post-dispense dripping when dispensing medium to high viscosity liquids such as sillicon ,grease, etc.

Model

GR-H25

Air pressure

0.4-0.7Mpa

Min Dispensing volume

0.1ml

Max viscosity

1-50,000 cps

Operating frequency

<400 points/min

Benchtop Dispensing Machine BD-400YR Specifications:

Model

BD-400YR

Machine Travel:X/Y

400mm*400mm

Control System

Handheld teach pendant

Axis number

X/Y /Z axis ,tiltalbe platform with 90 degree rotataion cylinder

Motion system

step motor and sychronous belt

Max Work Movement Speed

Max 500mm/s

Min dispensing diameter

By valve

Programming Type

manual teaching

Positioning Accuracy

+/- 0.05mm

Repeatable Accuracy

+/- 0.05mm

Power Supply

AC220V 50~60Hz

Total Power

750W

Air Requirement

0.5Mpa

Overall Size L*W*H

W720*D700*H750mm
