Plunger structure ,flow rate can be ajusted precisely by micrometer ,small size and corrosion -resistant,it is suitable for UV glue ,paint ,oil etc .low viscosity, and good fluidity glue.

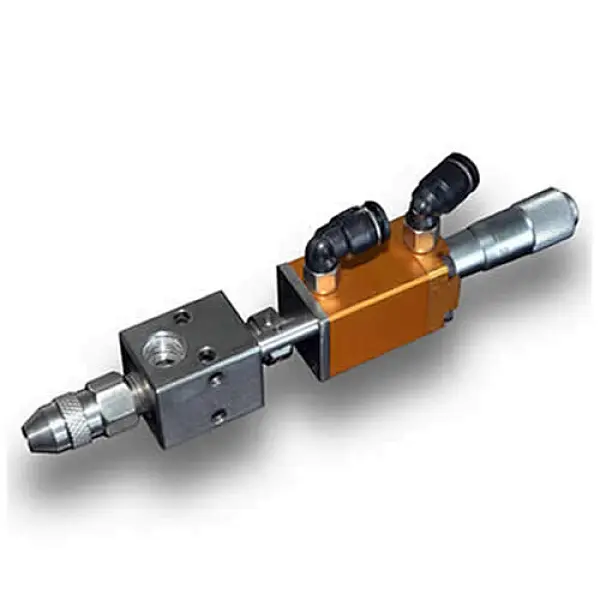

Micrometer high precision valve GR-D2121

Micrometer high precision valve GR-D2121

Plunger structure ,flow rate can be ajusted precisely by micrometer ,small size

and corrosion -resistant,it is suitable for UV glue ,paint ,oil etc .low viscosity,

and good fluidity glue.

Model

GR-D2121

Air pressure

0.4-0.7Mpa

Min Dispensing volume

0.01ml

Applicable viscosity

1-3000 cps

Operating frequency

<400 points/min

Glue inlet dimension

1/8"

Adjustable precision  valve GR-H2222

Adjustable precision valve GR-H2222

Plunger structure ,small flow rate valve ,flow rate can be ajusted ,small size and

corrosion -resistant,it is suitable for midium -high viscosity ,and poor fluidity glue,

such as silicon glue ,epoxy glue,grease,red glue,etc.

Model

GR-H2222

Air pressure

0.4-0.7Mpa

Min Dispensing volume

0.02ml

Max viscocity

1-100,000 cps

Operating frequency

<400 points/min

Glue inlet dimension

1/8"

Suck back  valve GR-H25

Suck back valve GR-H25

The GR-H25 Suck-Back Valve is designed to prevent extra protection against

post-dispense dripping when dispensing medium to high viscosity liquids such

as sillicon ,grease, etc.

Model

GR-H25

Air pressure

0.4-0.7Mpa

Min Dispensing volume

0.1ml

Max viscocity

1-50,000 cps

Operating frequency

<400 points/min

V-1000

V-1000

Coating thickness can be adjusted by changing air pressure and moving speed.

Coating width can be adjusted by changing air pressure.

V-1000 coating valve is applied to areas where: 1.most of coating .

Model

V-1000

Spraying swath

6-8mm

Air pressure

0.2-0.4Mpa

Max viscocity

1000 cps

Edge definition

1mm
