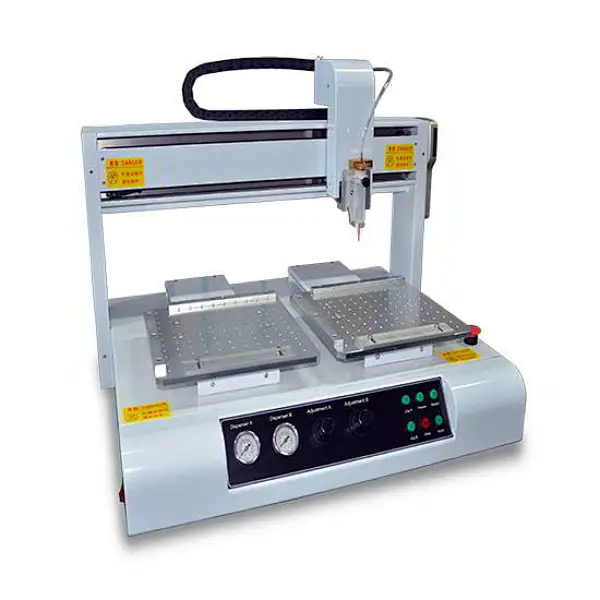

Double Station Benchtop Dispensing Machine GR-300S2Y
Double Station Benchtop Dispensing Machine GR-300S2Y

Double Station Benchtop Dispensing Machine GR-300S2Y

The GR300S2Y is an automated desktop type dispensing Robot with  double-station,  2  independent  control  working  stations apply  to  more  dispensing  projects, dispensing  and  replacing product can be executed simultaneously by 2 work stations dispensing robot,dispensing head never stop, it  greatlly improve production effiency.

Built-in a fully-integrated dispensing controller with independent air regulator and suck back function.

● Built-in a fully-integrated dispensing controller with independent air regulator and suck back function.

Hand-held teach pendant with powerful software  is easy for programming.

● Hand-held teach pendant with powerful software is easy for programming.

Virous valves with glue feeding system meet different fluid  dispensing requirement

● Virous valves with glue feeding system meet different fluid dispensing requirement, for examples: UV adhesive, EPOXY (black adhesive), white adhesive, SILICON, epoxy resin, grease, conformal coating fluid,and other kinds of fluid dispensing.

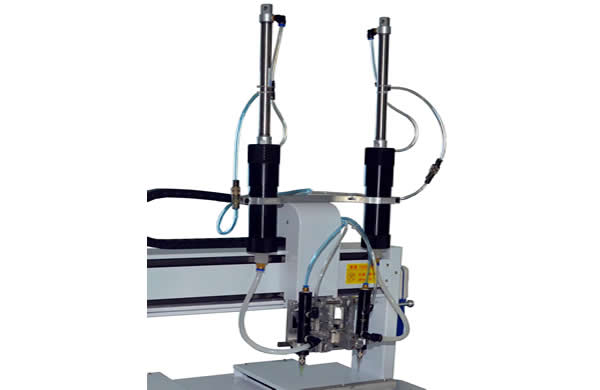

Application : 310ml cartridge with GR-H25 valve for,  grease and thermal conductive sillicon dispensing.

● Application : 310ml cartridge with GR-H25 valve for, grease and thermal conductive sillicon dispensing.

Double Station Benchtop Dispensing Machine GR-300S2Y specification

Item

Model GR300S GR300D GR300S2Y GR300D2Y

Stroke(mm)

Numberof Axis 3 3 4 4
(SingleheadX,Y,Z) (DoubleheadX,Y,Z) (SingleheadX,Y1,Y2,Z) (DoubleheadX,Y1,Y2,Z)
X-aixs 300 300 300 300
Y-aixs 300 300 300 300
Z-aixs 80 80 80 80

Speed (mm/s)

Zaixs 2.5-250 2.5-250 2.5-250 2.5-250
XYaixs ±0.05mm ±0.05mm ±0.05mm ±0.05mm

Repeatability(mm)

Z-aixs

±0.05mm

±0.05mm

±0.05mm

±0.05mm

Dimensions(mm)

WxDxH

550x640x660

550x640x660

850 x 650 x 660

850 x 650 x 660

Weight

NetWeight

50kg

55kg

80kg

85kg

Power source

Voltage/Frequency AC220V,singlephase,50/60Hz
Capacity 750W 750W 800W 800W

Motor

Type Step motor
Operation MicroStep

Programming

Techingmethod Hand-heldteachpendant,ManualDatainput
Motioncontrol PTP,CP(3dimensionalstraightline/circulararcinterpolation)
Programcapacity 2G memory ,100 programs or instruction ≤8000

MaximumLoad

X-YAxes:15Kg(33lbs.) ZAxis:6Kg(13lbs.)

WorkingTemperature

0 - 40°C (32-104°F)

AirInput

5 Kg/cm² (approx.70psi)
