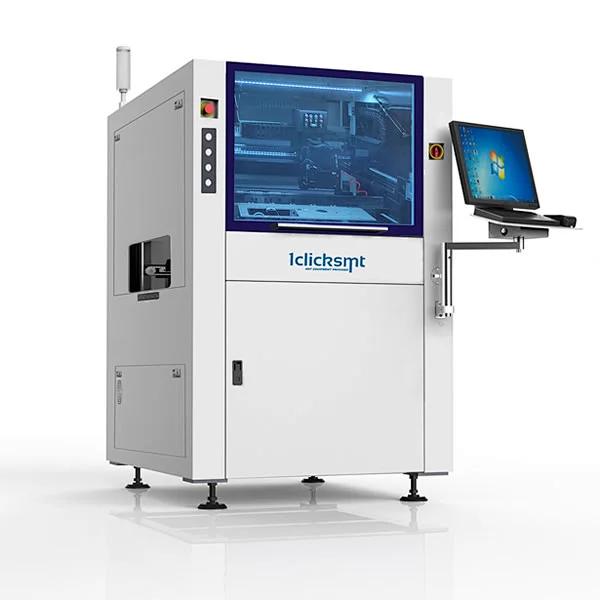

High Speed Dispensing Machine SD-450

Standard configuration :

X/Y axis controlled by Panasonic servo motor & ballscrew, max speed 1500mm/s.

Max W400*D450mm PCB capable

Repeatable accuracy : +/-0.02mm

Nozzle temperature control system

Vacuum nozzle cleaning system.

Liquid level in tube detecting system .

X/Y/Z axis auto correction platform.

Visual system

Not included valve

High Speed Dispensing Machine SD-450 Overall Dimension :

High Speed Dispensing Machine SD-450 Overall Dimension

High Speed Dispensing Machine SD-450 Details:

Solid motion platform ,X/Y/Zaxis is controlled by Panasonic servo motor ,max running speed can reach 1500mm/s.

● Solid motion platform ,X/Y/Zaxis is controlled by Panasonic servo motor ,max running speed can reach 1500mm/s.

Standard equipped with high precision peumatic jet valve JET-6000 .VERMERS Piezoelectric jet valve is optional.

● Standard equipped with high precision peumatic jet valve JET-6000 .VERMERS Piezoelectric jet valve is optional.

Material level detection.

● Material level detection.

● Nozzle temperature control.

X/Y/Z correction platform.

● X/Y/Z correction platform.

● Nozzle suction cleaning.

● Glue weighing device (option).

Keyence laser height detecting system to correct the dispensing height.

● Keyence laser height detecting system to correct the dispensing height.

High Speed Dispensing Machine SD-450 Visual system:

Vision System

1、 Danish JAI CMOS high-speed camera of 5 mega-pixel

2、 5 mega-pixel high sesolution Ricoh lenses made in Japan. It can achieve 5MM depth of field: Take pictures clearly if the substrate fluctuate in 5MM

3、 Illuminator：Use annular blue shadowless light source. It can eliminate glare and reflection efficiently caused by LED, has shadowless effect Side glowing LED will have a good uniformity through Flat light material’s diffusion, can cover larger area.

4、 Image processing : Cooperate with famous image processing company named CK Vision . It can inspect fast and precisely. Repeated detection for the mark within 0.005mm

5、 Detection mode: Mark and bad mark detections can be achieved if the images within 20MM*20MM

6、 Regularly detect the glue width when it is running.

High Speed Dispensing Machine SD-450 Software:

1、Full english interface ,software based on Windows 7 OS, easy to operate , It can realize Laser positioning, dot , line ,circle, arc instruction.

Full english interface ,software based on Windows 7 OS, easy to operate , It can realize Laser positioning, dot , line ,circle, arc instruction.

2、Search function: Only need to edit one dispense location when PCB has many same components, others can be searched automatically and use the same dispense program to edit them.

3、It can locate fast through the images . Camera will locate the relevant position when click the image at the same time . It is very convenient to find the components.

It can locate fast through the images . Camera will locate the relevant position when click the image at the same time . It is very convenient to find the components.

4、Whole Panel Function , easy to setup panel with sub-program function.

5、Automatically check the dot image , and alarm if the dot is defective .

6、Software can load CSV file etc directly .

7、Support offline programming.

High Speed Dispensing Machine SD-450 Valve:

Peumatic Jet valve JET-6000 Features

Jet Valve JET-6000 Specifications
Air Pressure (Min)	0.6 Mpa
Dispensing freqency RPM(Max )	200 times /S
Best Feed Pressure	0～0．3Mpa
Dot Diameter(Min)	0.5mm
Dot Weight(Min)	0.024mg
Best Viscosity Range	3000～130000Cp
Nozzle Heating Temp.(Max)	80℃

Application ：
underfill
Pin encapsulating
conformal coating
package on package
dam&fill
Red glue dispensing
COB package

High Speed Dispensing Machine SD-450 Features :

● Solid motion platform ,X/Y axis is controlled by Panasonic servo motor ,max running speed can reach 1500mm/s.

● Standard equipped with high precision peumatic jet valve JET-6000 .VERMERS Piezoelectric jet valve is optional.

● Equipped with vacuum cleaning device, which improved the nozzle cleaning effect.

● Keyence laser height detecting system(Option) to correct the dispensing height.

● Material level detecting in syringe fuction , machine will alarm when material is insufficient.

● Equipped with X/Y/Z auto correction platform.

● Glue weighing function (Option) gurantees precise dispensing.

● Industrial CCD and it's mark positioning function.

● Teaching with CCD for programming , support loading CAD file.

● Automatic detection of glue size, machine will alarm if detect unqualified glue point.

● Industrial PC ,Windows operation system , full english interface ,very easy to use.

High Speed Dispensing Machine SD-450 specification :
Model	SD-450
Overall size	92112301500（LWH）
Control method	Industrial PC ,full English software based on Windows 7 OS
Visual System	5 million pixels CCD ,fiducial mark recognition and automatic correct coordinate offset
Conveyor	One section conveying , conveying height : 900+/- 20mm , left to right only.
Width adjustment	Single Lane: 80～450mm , automatic width adjustment
X/Y axis Drive Model	Servo Motor
Z Axis Drive Mode	Servo Motor
Maximum Speed	X/Y : 1000mm/S
Repeatable Accuracy	0.02mm
Dispensing Area	X=400mm ,Y=450mm
Valve Heating	Room Temperature～80℃±3℃
Material Volume	30CC Or 50CC
Material Detection	Automatically Inspect glue dispensing size.
Nozzle Cleaner	Vacuum Cleaning System
Communication Connector	SMEMA
Program Method	CAD file load , Manual Teaching， offline programming
Power Supply	1P,220V 50～60HZ
Air Pressure	7kg/cm2
Power	Max 2.5KW
Machine Weight	850 kg

High Speed Dispensing Machine SD-450 configuration:

Standard machine includes :

● X/Y/Z axis controlled by servo motor.

● Industrial PC ,monitor, Keyboard,mouse.

● 1 section conveyor controlled by step motor with automatic adjustment.

● 3 color alarm lamp.

● CCD visual system.

● Nozzle heating.

● Vacuum nozzle cleaning device.

● Liquid level in tube detecting device.

● X/Y/Z axis auto correction platform.

● SMEMA cable.

● Pneumatic jet valve JET-6000 *1set.

● 1 year parts warranty.

Optional configuration:

● VERMERS Piezoelectric jet valve.

● Precision glue weighing system .

● Laser height detecting system .

● Air pressure boosting pump(for pneumatic jet valve).

● Bottom heating device.

● Bar code reading system.

● Offline programming software.
