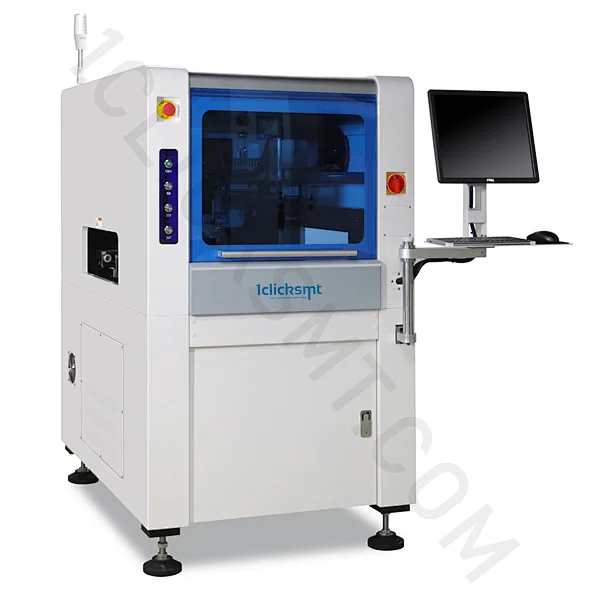

Large Board Dispensing Machine LD-600 Details: |
|||||||||||||||||
|
|
● Solid motion platform for LED board dispensing , X/Y axis is controlled by Fuji servo motor ,max running speed can reach 1000mm/s. |
||||||||||||||||
|
|
● Standard equipped with high precision peumatic jet valve JET-6000. |
||||||||||||||||
|
|
● Material level detection. ● Nozzle temperature control. |
||||||||||||||||
|
|
● X/Y/Z correction platform. ● Nozzle suction cleaning. ● Glue weighing device (option). |
||||||||||||||||
|
|
● Keyence laser height detecting system to correct the dispensing height. |
||||||||||||||||
|
Large Board Dispensing Machine LD-600 Visual system: |
|||||||||||||||||
|
Vision System |
1、 Danish JAI CMOS high-speed camera of 5 mega-pixel 2、 5 mega-pixel high sesolution Ricoh lenses made in Japan. It can achieve 5MM depth of field: Take pictures clearly if the substrate fluctuate in 5MM 3、 Illuminator：Use annular blue shadowless light source. It can eliminate glare and reflection efficiently caused by LED, has shadowless effect Side glowing LED will have a good uniformity through Flat light material’s diffusion, can cover larger area. 4、 Image processing : Cooperate with famous image processing company named CK Vision . It can inspect fast and precisely. Repeated detection for the mark within 0.005mm 5、 Detection mode: Mark and bad mark detections can be achieved if the images within 20MM*20MM 6、 Regularly detect the glue width when it is running. |
||||||||||||||||
 |
|||||||||||||||||
|
Large Board Dispensing Machine LD-600 Software: |
|||||||||||||||||
|
1、Full english interface ,software based on Windows 7 OS, easy to operate , It can realize Laser positioning, dot , line ,circle, arc instruction.
2、Search function: Only need to edit one dispense location when PCB has many same components, others can be searched automatically and use the same dispense program to edit them. 3、It can locate fast through the images . Camera will locate the relevant position when click the image at the same time . It is very convenient to find the components.
4、Whole Panel Function , easy to setup panel with sub-program function. 5、Automatically check the dot image , and alarm if the dot is defective . 6、Software can load CSV file etc directly . 7、Support offline programming. |
|||||||||||||||||
|
Large Board Dispensing Machine LD-600 Valve: |
|||||||||||||||||
|
Peumatic Jet valve JET-6000 Features |
|
||||||||||||||||
 |
|||||||||||||||||
| Application ： underfill Pin encapsulating conformal coating package on package dam&fill Red glue dispensing COB package |
|||||||||||||||||
Large board Dispensing Machine LD-600
Valve Option :
China made penumatic jet valve Jet-6000
Air pressure boosting pump (for penumatic jet valve)
VERMERS Piezoelectric jet valve
TECHCON TS5000DMP rotary valve
Conveyor option:
Multi stopper systeml
Rail bottom heating device
Software option:
High precision glue weighing system
Laser height detecting system
Bar code reading system
Offline programming software
|
Large Board Dispensing Machine LD-600 specification : |
|
|
Model |
LD-600 |
|
Overall size |
1100*1390*1500（L*W*H） |
|
Control method |
Industrial PC ,full English software based on Windows 7 OS |
|
Visual System |
5 million pixels CCD ,fiducial mark recognition and automatic correct coordinate offset |
|
Conveyor |
One section conveying , conveying height : 900+/- 20mm , left to right only. |
|
Width adjustment |
Single Lane: 80～600mm , automatic width adjustment |
|
X/Y axis Drive Model |
Servo Motor |
|
Z Axis Drive Mode |
Servo Motor |
|
Maximum Speed |
X/Y : 1000mm/S |
|
Repeatable Accuracy |
0.02mm |
|
Dispensing Area |
X=600mm ,Y=600mm |
|
Valve Heating |
Room Temperature～80℃±3℃ |
|
Material Volume |
30CC Or 50CC |
|
Material Detection |
Automatically Inspect glue dispensing size. |
|
Nozzle Cleaner |
Vacuum Cleaning System |
|
Communication Connector |
SMEMA |
|
Program Method |
CAD file load , Manual Teaching， offline programming |
|
Power Supply |
1P,220V 50～60HZ |
|
Air Pressure |
7kg/cm2 |
|
Power |
Max 2.5KW |
|
Machine Weight |
800 kg |
