Single Station Benchtop Dispensing Machine GR-300S
Single Station Benchtop Dispensing Machine GR-300S

Single Station Benchtop Dispensing Machine GR-300S

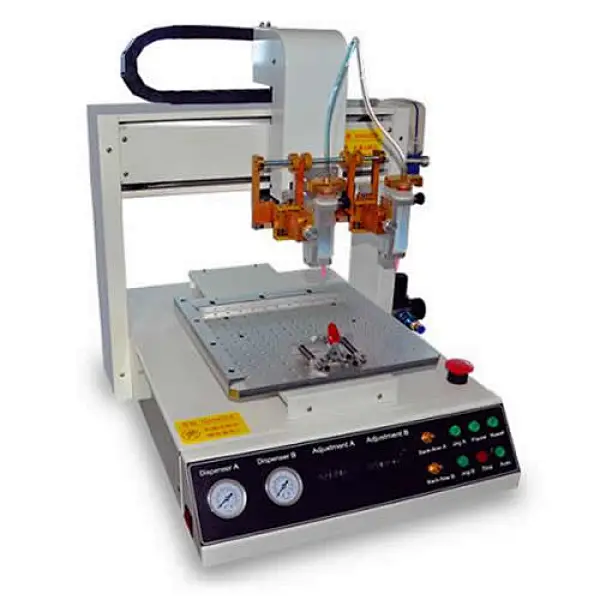

The GR300S is an automated desktop type dispensing robot with a variety of  dispensing valve and material feeding system to meet different material dispensing requirement.

Built-in a fully-integrated dispensing controller with independent air regulator and suck back function.

Built-in a fully-integrated dispensing controller with independent air regulator and suck back function.


Hand-held teach pendant with powerful software is easy for programming .

Virous valves with glue feeding system meet different fluid  dispensing requirement , for  examples: UV adhesive,  EPOXY (black adhesive), white adhesive, SILICON, epoxy resin,  grease , conformal coating fluid,and other kinds of fluid dispensing.

Virous valves with glue feeding system meet different fluid dispensing requirement , for examples: UV adhesive, EPOXY (black adhesive), white adhesive, SILICON, epoxy resin, grease , conformal coating fluid,and other kinds of fluid dispensing.

Application : 310ml cartridge with GR-H25 valve for , grease and thermal conductive sillicon dispensing.

Micrometer high precision valve GR-D2121

Micrometer high precision valve GR-D2121

Plunger structure ,flow rate can be ajusted precisely by micrometer ,small size and corrosion -resistant,it is suitable for UV glue ,, paint ,oil etc .low viscosity ,and good fluidity glue.

Model

GR-D2121

Air pressure

0.4-0.7Mpa

Min Dispensing volume

0.01ml

Applicable viscosity

1-3000 cps

Operating frequency

<400 points/min

Glue inlet dimension

1/8"

Adjustable precision  valve GR-H2222

Adjustable precision valve GR-H2222

Plunger structure ,small flow rate valve ,flow rate can be ajusted ,small size and corrosion -resistant,it is suitable for midium -high viscosity ,and poor fluidity glue ,such as silicon glue ,epoxy glue,grease,red glue,etc.

Model

GR-H2222

Air pressure

0.4-0.7Mpa

Min Dispensing volume

0.02ml

Max viscocity

1-100,000 cps

Operating frequency

<400 points/min

Glue inlet dimension

1/8"

Suck back  valve GR-H25

Suck back valve GR-H25

The GR-H25 Suck-Back Valve is designed to prevent extra protection against post-dispense dripping when dispensing medium to high viscosity liquids such as sillicon ,grease, etc.

Model

GR-H25

Air pressure

0.4-0.7Mpa

Min Dispensing volume

0.02ml

Max viscocity

1-100,000 cps

Operating frequency

<400 points/min

V-1000

V-1000

Coating thickness can be adjusted by changing air pressure and moving speed.

Coating width can be adjusted by changing air pressure.

V-1000 coating valve is applied to areas where: 1.most of coating .

Model

V-1000

Spraying swath

6-8mm

Air pressure

0.2-0.4Mpa

Max viscocity

1000 cps

Edge definition

1mm

Single Station Benchtop Dispensing Machine GR-300S specification :

Item

Model GR300S GR300D GR300S2Y GR300D2Y

Stroke(mm)

Numberof Axis 3 3 4 4
(SingleheadX,Y,Z) (DoubleheadX,Y,Z) (SingleheadX,Y1,Y2,Z) (DoubleheadX,Y1,Y2,Z)
X-aixs 300 300 300 300
Y-aixs 300 300 300 300
Z-aixs 80 80 80 80

Speed (mm/s)

Zaixs 2.5-250 2.5-250 2.5-250 2.5-250
XYaixs ±0.05mm ±0.05mm ±0.05mm ±0.05mm

Repeatability(mm)

Z-aixs

±0.05mm

±0.05mm

±0.05mm

±0.05mm

Dimensions(mm)

WxDxH

550x640x660

550x640x660

850 x 650 x 660

850 x 650 x 660

Weight

NetWeight

50kg

55kg

80kg

85kg

Power source

Voltage/Frequency AC220V,singlephase,50/60Hz
Capacity 750W 750W 800W 800W

Motor

Type Step motor
Operation MicroStep

Programming

Techingmethod Hand-heldteachpendant,ManualDatainput
Motioncontrol PTP,CP(3dimensionalstraightline/circulararcinterpolation)
Programcapacity 2G memory ,100 programs or instruction ≤8000

MaximumLoad

X-YAxes:15Kg(33lbs.) ZAxis:6Kg(13lbs.)

WorkingTemperature

0 - 40°C (32-104°F)

AirInput

5 Kg/cm² (approx.70psi)
