Benchtop Dispensing Machine SD-400i Features: |
|
● High precison Panasonic servo motor ,ball screw and it's driving system , ensure stable and precise run of motion system. |
|
● Machine can fit high precision JET valve, min dispensing diameter can reach 0.5mm, and fluid temperature control system ensures stable and consistant dispensing. |
|
● Equipped with high quality Industrial CCD , powerful visual software makes programming easier and accurater. |
|
● Equipped with vacuum cleaning device for jet valve. |
|
● Powerful software has the painting point, straight line, round, rectangular, and other graphical command; Position correction function ,fluid weight control function etc . easy to realize dispensing process of encapsulation ,underfill , dam etc. |
|
● Excellent vision system which can recognize the contour of product to help dispensing on FPC or deformed product. |
|
● Laser height detecting and height correcting system is choosable. |
|
● Industrial PC ,windows operation system , full english interface ,very easy to operate. |

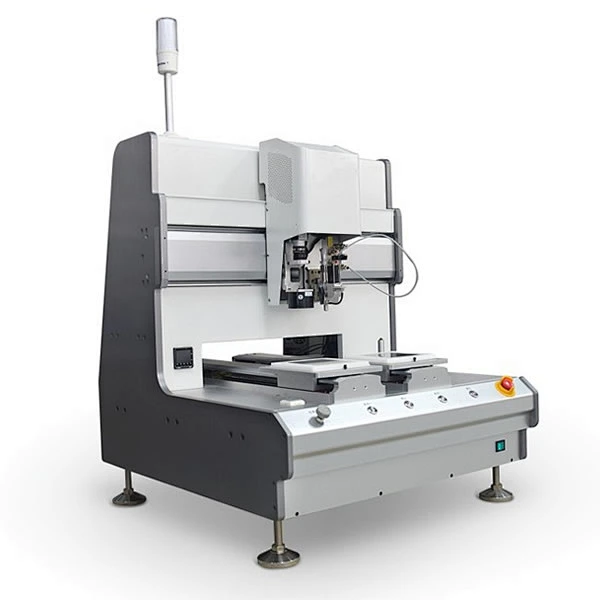

Benchtop Dispensing Machine SD-400i
Benchtop Dispensing Machine SD-400i adopt high precison servo control system which ensures stable and precise run of machine . it can fit different valve. it's visual system make programming easier and ensures precise dispensing . Standard machine not included valve because customer's different application.
Valve Option :
● China made penumatic jet valve Jet-6000
● Air pressure boosting pump (for penumatic jet valve)
● VERMERS Piezoelectric jet valve
● TECHCON TS5000DMP rotary valve
Software option:
● High precision glue weighing system
● Laser height detecting system
● Bar code reading system
● Offline programming software
|
Benchtop Dispensing Machine SD-400i specification : |
|
|
Model |
SD-400i |
|
Dispensing scope |
350mm*300mm |
|
Control System |
Industrial computer/motion control card |
|
Axis number |
X,Y,Z axis |
|
Motion system |
Servo motor and ball screws |
|
Max Work Movement Speed |
Max 500mm/s |
|
Programming Type |
Camera teaching/CAD load |
|
Positioning Accuracy |
+/- 0.05mm |
|
Repeatable Accuracy |
+/- 0.05mm |
|
CCD visual system |
Industrial CCD |
|
Glue weighing system (option) |
0.1mg |
|
Power Supply |
AC220V 50~60Hz |
|
Total Power |
800W |
|
Air Requirement |
0.6Mpa |
|
Overall Size L*W*H |
726mm*787mm*830mm |
