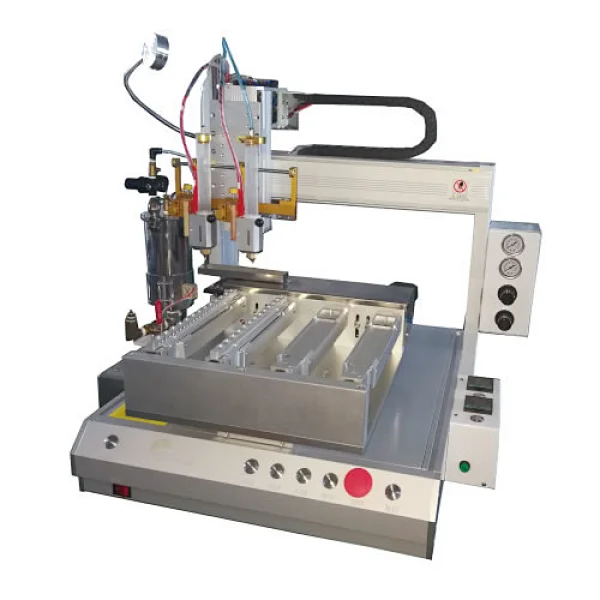

5 Axis Benchtop Dispensing Machine GR-400B
5 Axis Benchtop Dispensing Machine GR-400B

5 Axis Benchtop Dispensing Machine GR-400B

The GR-400B is an automated X/Y/Z desktop dispensing Robot with two 360 degree rotary platform , which can realize dispensing glue on 4 side of the product.

GR-400B

● X/Y/Z desktop dispensing Robot with two 360 degree rotary platform, which can realize dispensing glue on 4 side of the product , such as transfomer etc.

● Distance of double head is adjustble.

● A/B rotation platform can be controlled independently.

Hand-held teach pendant with powerful software  is easy for programming.

● Hand-held teach pendant with powerful software is easy for programming.

Typical application : dispensing glue on 4 side of small tranformer.

● Typical application : dispensing glue on 4 side of small tranformer.

Micrometer high precision valve GR-D2121

Micrometer high precision valve GR-D2121

Plunger structure ,flow rate can be ajusted precisely by micrometer ,small size and corrosion -resistant,it is suitable for UV glue ,, paint ,oil etc .low viscosity ,and good fluidity glue.

Model

GR-D2121

Air pressure

0.4-0.7Mpa

Min Dispensing volume

0.01ml

Max viscocity

1-3000 cps

Operating frequency

<400 points/min

Glue inlet dimension

1/8"

Adjustable precision  valve GR-H2222

Adjustable precision valve GR-H2222

Plunger structure ,small flow rate valve ,flow rate can be ajusted ,small size and corrosion -resistant,it is suitable for midium -high viscosity ,and poor fluidity glue ,such as silica gel ,epoxy glue,grease,red glue, ,etc.

Model

GR-H2222

Air pressure

0.4-0.7Mpa

Min Dispensing volume

0.02ml

Max viscocity

1-50,000 cps

Operating frequency

<400 points/min

Glue inlet dimension

1/8"

Suck back  valve GR-H25

Suck back valve GR-H25

The GR-H25 Suck-Back Valve is designed to prevent extra protection against post-dispense dripping when dispensing medium to high viscosity liquids such as sillicon ,grease, etc.

Model

GR-H25

Air pressure

0.4-0.7Mpa

Min Dispensing volume

0.1ml

Max viscosity

1-50,000 cps

Operating frequency

<400 points/min

5 Axis Benchtop Dispensing Machine GR-400B specification:

Model

GR-400B

Machine Travel:X/Y

400mm*400mm

Control System

Handheld teach pendant

Axis number

X/Y /Z axis and A/B two rotation axis

Motion system

X/Y and A/B axis : close-loop step motor and sychronous belt Z axis : step motor and sychronous belt

A/B axis rotation angle

360 degree

Max Work Movement Speed

Max 500mm/s

Programming Type

manual teaching

Repeatable Accuracy

+/- 0.05mm

Power Supply

1phase ,AC220V 50~60Hz

Total Power

750W

Air Requirement

0.5Mpa

Overall Size L*W*H

L770mm×W710mm×H720mm
