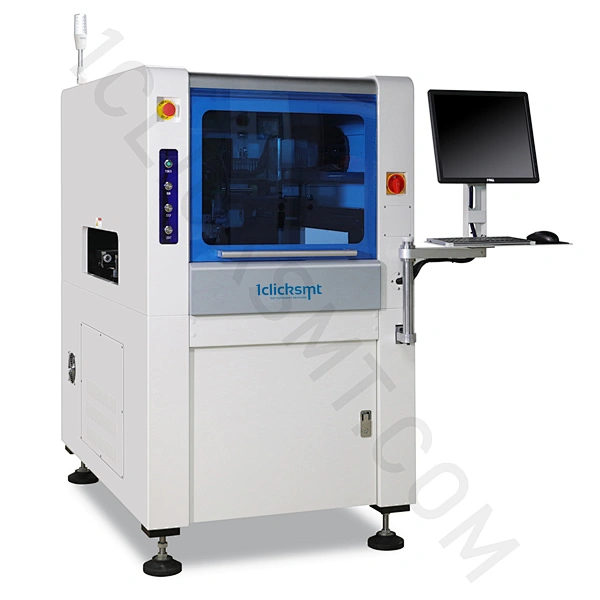

Ultra Speed Dispensing Machine JD-450
Ultra Speed Dispensing Machine JD-450

Ultra Speed Dispensing Machine JD-450

Valve bracket feature Option :

Double valve sychronous controlling system

Double valve independent controlling system

Valve Option :

China made penumatic jet valve Jet-6000

Air pressure boosting pump (for penumatic jet valve)

VERMERS Piezoelectric jet valve

TECHCON TS5000DMP rotary valve

Conveyor option:

Rail bottom heating device

Software option:

High precision glue weighing system

Laser height detecting system

Bar code reading system

Offline programming software

Ultra Speed Dispensing Machine JD-450 Overall Dimension :

Dimension

Ultra Speed Dispensing Machine JD-450 Sturcture :

JD-450 Sturcture.jpg

Ultra Speed Dispensing Machine JD-450 Sturcture

Ultra Speed Dispensing Machine JD-450 Key parts

Ultra Speed Dispensing Machine JD-450 Key parts

Ultra Speed Dispensing Machine JD-450 Details:

Solid motion platform ,X/Y axis is controlled by linear motor ,max running speed can reach 2000mm/s,acceleration can reach 3g.

● Solid motion platform ,X/Y axis is controlled by linear motor ,max running speed can reach 2000mm/s,acceleration can reach 3g.

High precision peumatic jet valve or VERMERS Piezoelectric jet valve is choosable.

● High precision peumatic jet valve or VERMERS Piezoelectric jet valve is choosable.

Material level detection.

● Material level detection.

● Nozzle temperature control.

X/Y/Z correction platform.

● X/Y/Z correction platform.

● Nozzle suction cleaning.

● Glue weighing device (option).

Keyence laser height detecting system to correct the dispensing height.

● Keyence laser height detecting system to correct the dispensing height.

Ultra Speed Dispensing Machine JD-450 Visual system:

Vision System

1、 Danish JAI CMOS high-speed camera of 5 mega-pixel

2、 5 mega-pixel high sesolution Ricoh lenses made in Japan. It can achieve 5MM depth of field: Take pictures clearly if the substrate fluctuate in 5MM

3、 Illuminator:Use annular blue shadowless light source. It can eliminate glare and reflection efficiently caused by LED, has shadowless effect Side glowing LED will have a good uniformity through Flat light material’s diffusion, can cover larger area.

4、 Image processing : Cooperate with famous image processing company named CK Vision . It can inspect fast and precisely. Repeated detection for the mark within 0.005mm

5、 Detection mode: Mark and bad mark detections can be achieved if the images within 20MM*20MM

6、 Regularly detect the glue width when it is running.

Vision System

Ultra Speed Dispensing Machine JD-450 Software:

1、Full english interface ,software based on Windows 7 OS, easy to operate , It can realize Laser positioning, dot , line ,circle, arc instruction.

Full english interface ,software based on Windows 7 OS, easy to operate , It can realize Laser positioning, dot , line ,circle, arc instruction.

2、Search function: Only need to edit one dispense location when PCB has many same components, others can be searched automatically and use the same dispense program to edit them.

3、It can locate fast through the images . Camera will locate the relevant position when click the image at the same time . It is very convenient to find the components.

It can locate fast through the images . Camera will locate the relevant position when click the image at the same time . It is very convenient to find the components.

4、Whole Panel Function , easy to setup panel with sub-program function.

5、Automatically check the dot image , and alarm if the dot is defective .

6、Software can load CSV file etc directly .

7、Support offline programming.

Ultra Speed Dispensing Machine JD-450 Valve:

Peumatic Jet valve JET-6000 Features

Jet Valve JET-6000 Specifications

Air Pressure (Min)

0.6 Mpa

Dispensing freqency RPM(Max )

200 times /S

Best Feed Pressure

0~0.3Mpa

Dot Diameter(Min)

0.5mm

Dot Weight(Min)

0.024mg

Best Viscosity Range

3000~130000Cp

Nozzle Heating Temp.(Max)

80℃

Peumatic Jet valve JET-6000 Features
Application :
underfill
Pin encapsulating
conformal coating
package on package
dam&fill
Red glue dispensing
COB package

Ultra Speed Dispensing Machine JD-450 Features :

● Solid motion platform ,X/Y axis is controlled by linear motor ,max running speed can reach 2000mm/s, acceleration can reach 3g.

● High precision peumatic jet valve or VERMERS Piezoelectric jet valve is choosable ,machine can install max 1 set of valve.

● Equipped with vacuum cleaning device, which improved the nozzle cleaning effect.

● Keyence laser height detecting system(Option) to correct the dispensing height.

● Material level detecting in syringe fuction , machine will alarm when material is insufficient.

● Equipped with X/Y/Z auto correction platform.

● Glue weighing function (Option) gurantees precise dispensing.

● Industrial CCD and it's mark positioning function.

● Teaching with CCD for programming , support loading CAD file.

● Automatic detection of glue size, machine will alarm if detect unqualified glue point.

● Industrial PC ,Windows operation system , full english interface ,very easy to use.

Ultra Speed Dispensing Machine JD-450 specification :

Model

JD-450

Overall size

921 mm(W)×1230 mm(D)×1500 mm(H)

Control method

Industrial PC ,full English software based on Windows 7 OS

Visual System

5 million pixels CCD ,fiducial mark recognition and automatic correct coordinate offset

Conveyor

One section conveying , conveying height : 900+/- 20mm , left to right only.

Width adjustment

Single Lane: 80~430mm , automatic width adjustment

X/Y axis Drive Model

Linear Motor With Linear Encoders

Z Axis Drive Mode

Servo Motor

Maximum Speed

X/Y : 2000mm/S

Repeatable Accuracy

0.02mm

Dispensing Area

X=380mm ,Y=430mm ( with Single valve ) X=340mm ,Y=430mm (with double valve )

Dispensing valve quantity

1 valve (standard ) , 2 valve controlled synchronously (option) , 2 valve controlled independently (option).

Valve Heating

Room Temperature~80℃±3℃

Material Volume

30CC Or 50CC

Material Detection

Automatically Inspect glue dispensing size.

Nozzle Cleaner

Vacuum Cleaning System

Communication Connector

SMEMA

Program Method

CAD file load , Manual Teaching, offline programming

Power Supply

1P,220V 50~60HZ

Air Pressure

7kg/cm2

Power

Max 3.5KW

Machine Weight

1200 kg

Ultra Speed Dispensing Machine JD-450 configuration:

Standard machine includes :

● X/Y axis controlled by linear motor , Z axis controlled by servo motor.

● Industrial PC ,monitor, Keyboard,mouse.

● 1 section conveyor controlled by step motor with automatic adjustment.

● 3 color alarm lamp.

● CCD visual system.

● Nozzle heating.

● Vacuum nozzle cleaning device.

● Liquid level in tube detecting device.

● X/Y/Z axis auto correction platform.

● SMEMA cable.

● 1 year parts warranty.

Optional configuration:

● Pneumatic jet valve.

● VERMERS Piezoelectric jet valve.

● Double valve sychronous controlling system.

● Double valve independent controlling system.

● Precision glue weighing system .

● Laser height detecting system .

● Air pressure boosting pump(for pneumatic jet valve).

● Bottom heating device.

● Bar code reading system.

● Offline programming software.
